286204A: Full suspension bush kit R33 R34 AWD SPORT

Reference: 286204A

Product name: Full suspension bush kit R33 R34 AWD SPORT

Fits to:

• Nissan Laurel VII (93-97) C34 AWD
• Nissan Laurel VIII (97-02) C35 AWD
• Nissan Skyline IX (93-98) R33 AWD
• Nissan Skyline X (97-02) R34 AWD
• Nissan Stagea I (96-01) C34 AWD

Include:

• 2x 281400A: Front anti roll bar bush SPORT
  or
• 2x 281401A: Front anti roll bar bush GT-R SPORT

• 4x 281622A: Front upper wishbone bush SPORT
• 2x 281913A: Front hub bush SPORT

• 1x 281261A: Steering rack mount bush SPORT
                       45mm/48mm/50mm


• 2x 281262A: Front lower radius arm to chassis bush SPORT
  or
• 2x 281788A: Front lower radius arm to chassis bush GT-R SPORT

• 2x 281399A: Rear roe link inner bush SPORT
• 10x 281218A: Rear arm bush SPORT
• 4x 281398A: Rear trailing arm bushes SPORT
• 2x 281268A: Rear anti roll bar bush SPORT
• 4x 281269A: Rear anti roll bar link bush SPORT
• 4x 281271A: Rear beam mounting bush AWD SPORT
• 2x 281849A: Rear diff mount - front bush SPORT
• 2x 281850A: Rear diff mount - rear bush SPORT

Diagrams:

• D2803

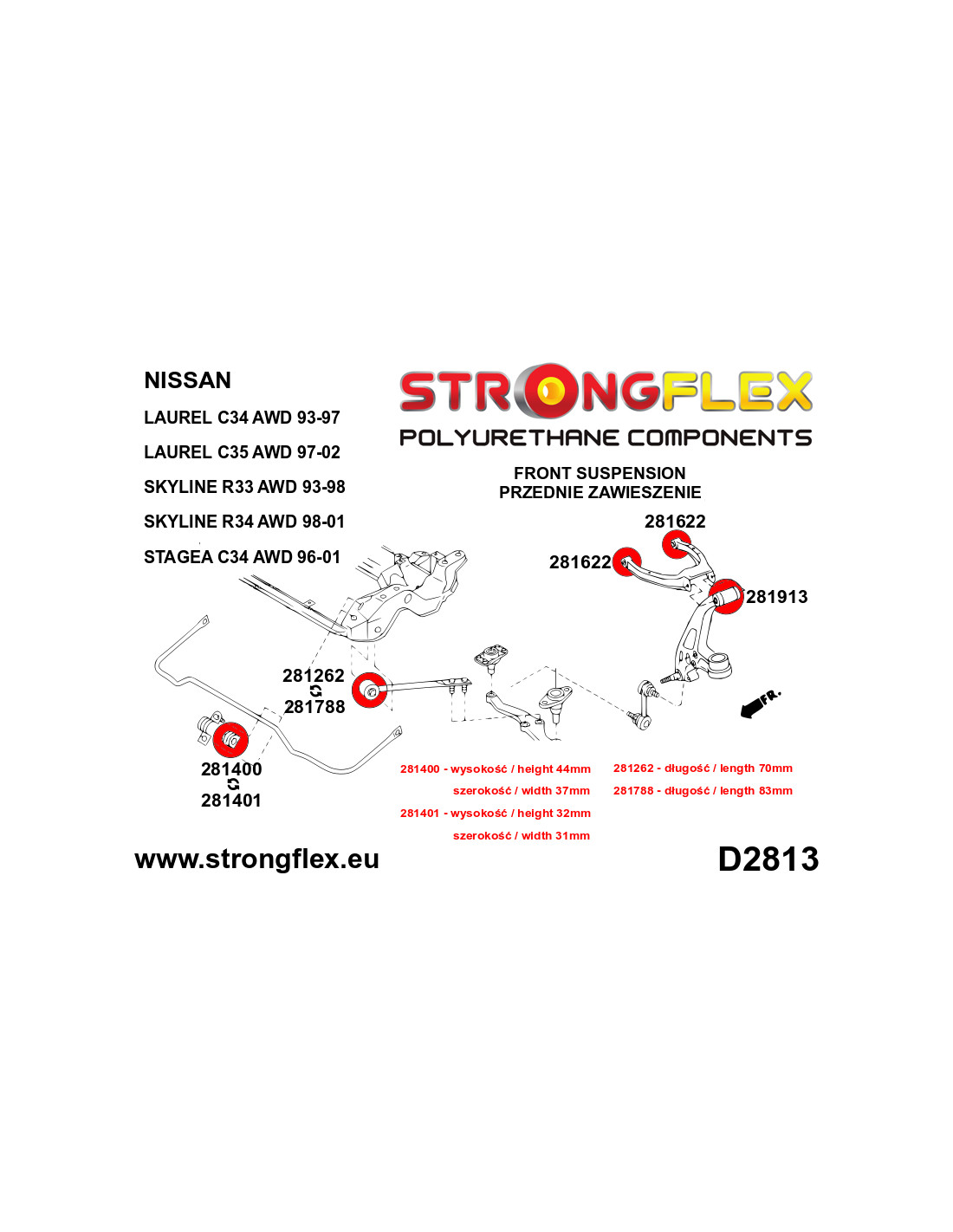

• D2813
• D2839
• D2832
• D2841
• S2804
• S2805

Notes

• Select the appropriate diameter of the steering gear bushing 45mm/48mm/50mm.

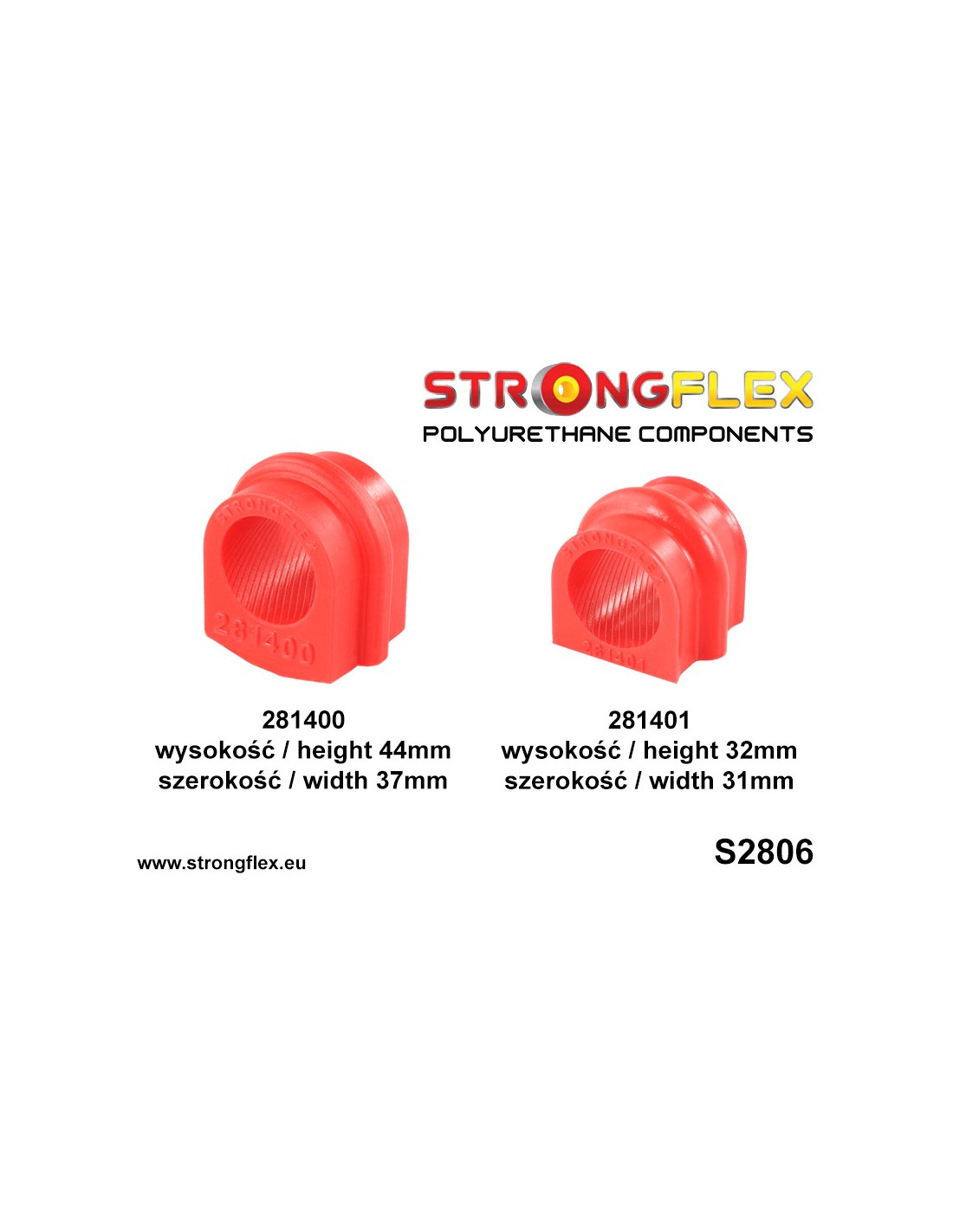

• For GT-R, select front stabilizer bushings 281401.
  For other versions, select front stabilizer bushings 281400.

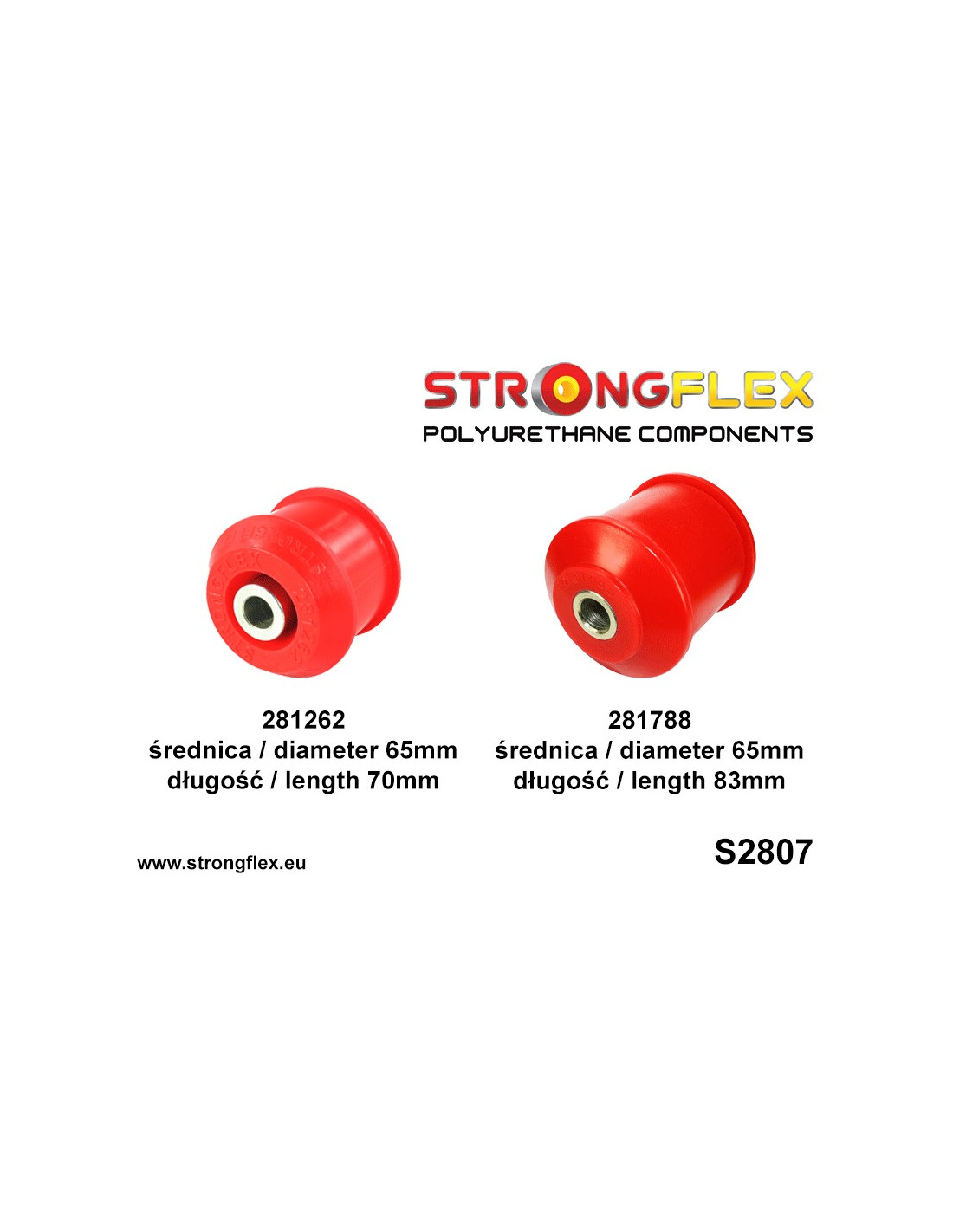

• For the GT-R version, select front torque rod bushings 281788.
  For other versions, select front torque rod bushings 281262.

• Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01.
  You can buy a replacement for the original washer matched to our bush.
  In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 41

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
