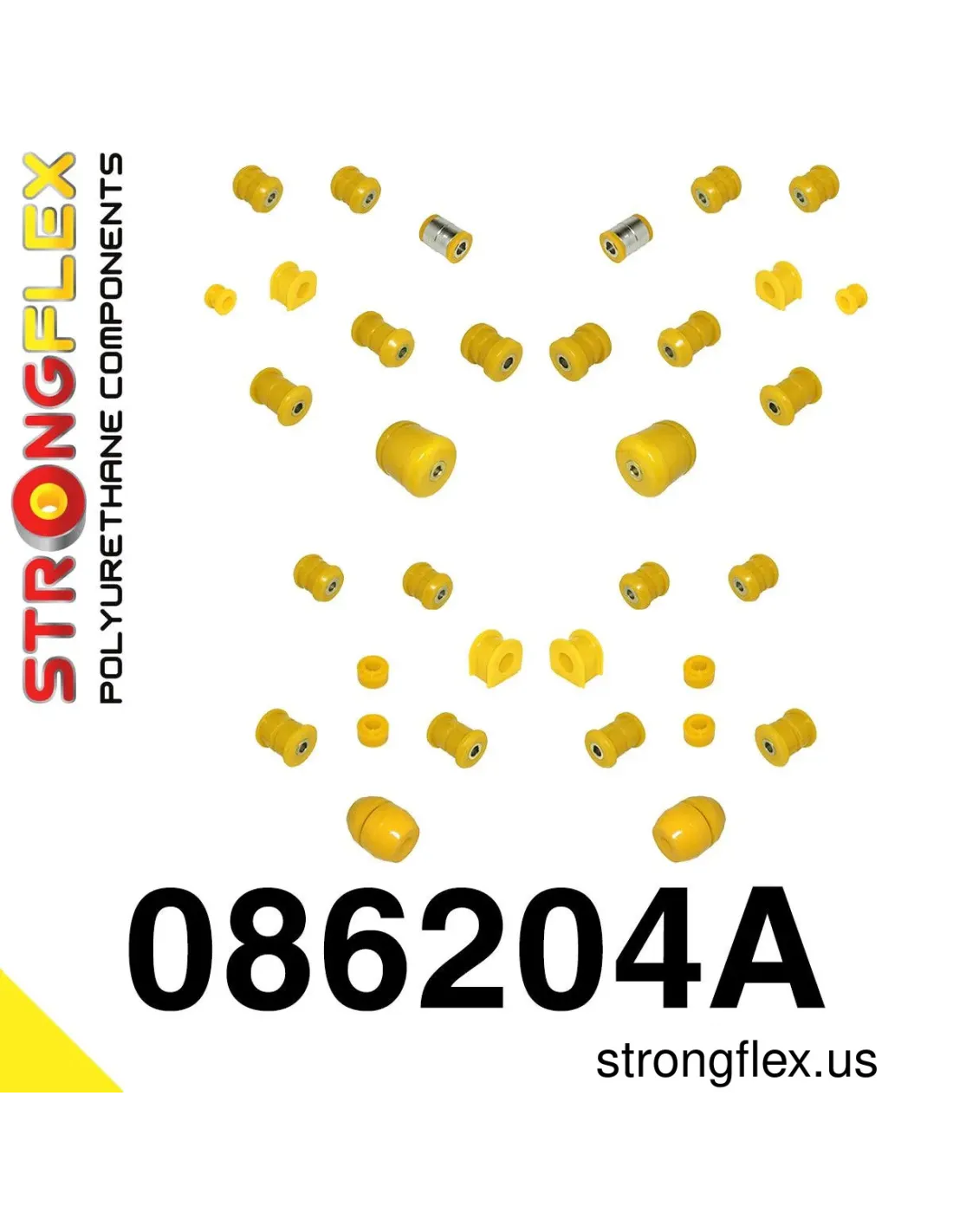

086204A: Full suspension bush kit SPORT

Reference: 086204A

Product name: Full suspension bush kit SPORT

Fits to:

• Honda Prelude IV (92-96) BA / BB

Include:

• 8x 081639A: Upper arm bush SPORT
• 2x 081640A: Front lower inner arm bush SPORT
• 2x 081641A: Front lower outer arm bush SPORT
• 2x 081713A: Front anti roll bar bush SPORT
• 2x 081740A: Front radius rod bush SPORT
• 4x 081743A: Front anti roll bar link bush SPORT
• 2x 081714A: Rear anti roll bar bush SPORT
• 2x 081741A: Rear anti roll bar link bush SPORT


• 0/2x 081742A: Rear toe adjuster inner bush SPORT*


• 2x 081643A: Rear lower inner arm bush SPORT
• 2x 081646A: Rear lower outer arm bush SPORT
• 2x 081647A: Rear trailing arm front bush SPORT
• 2x 081648A: Rear trailing arm rear bush SPORT

Diagrams:

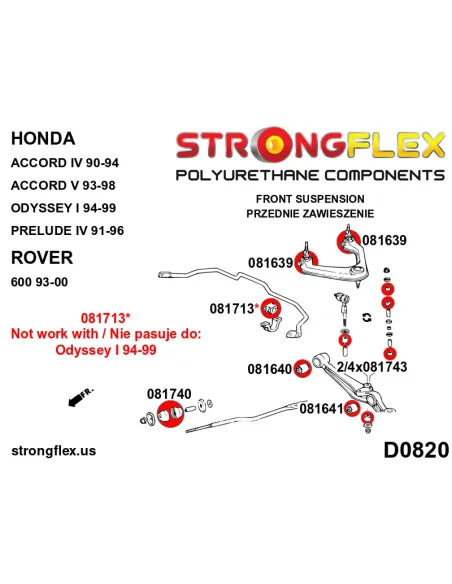

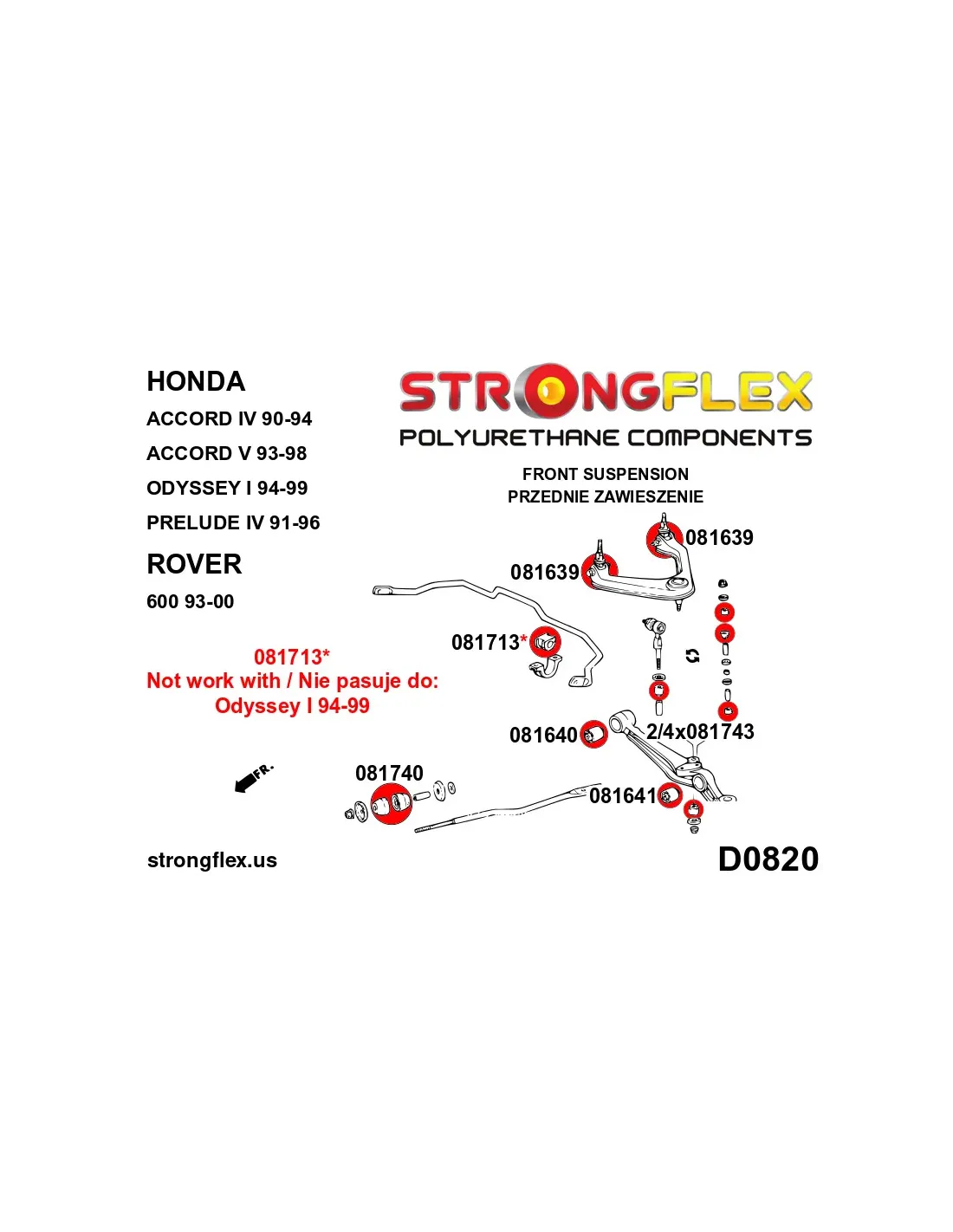

• D0820

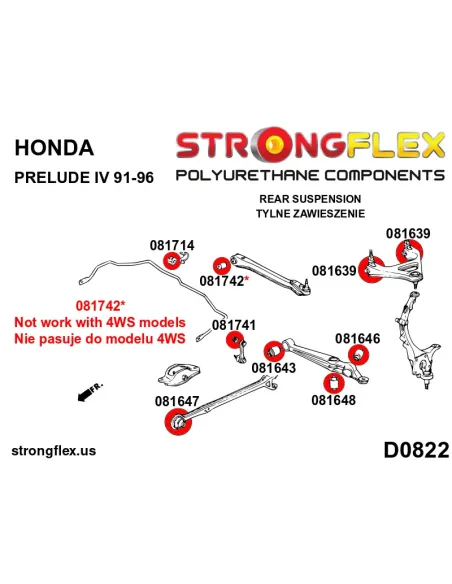

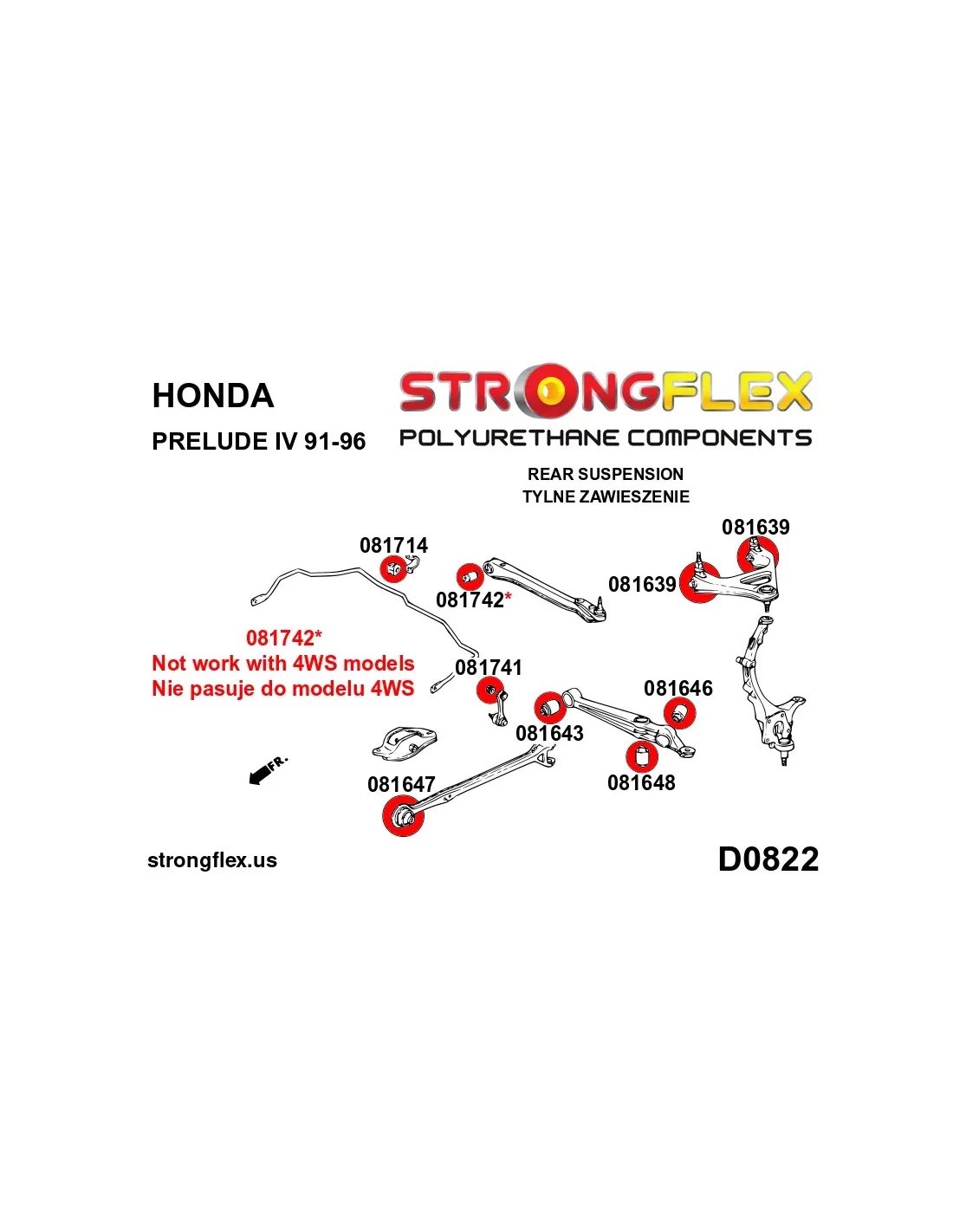

• D0822

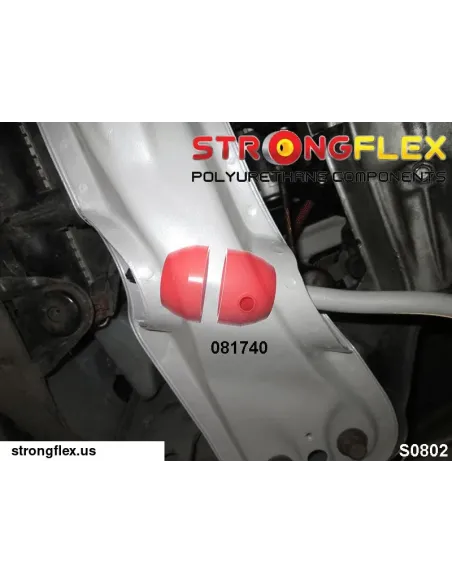

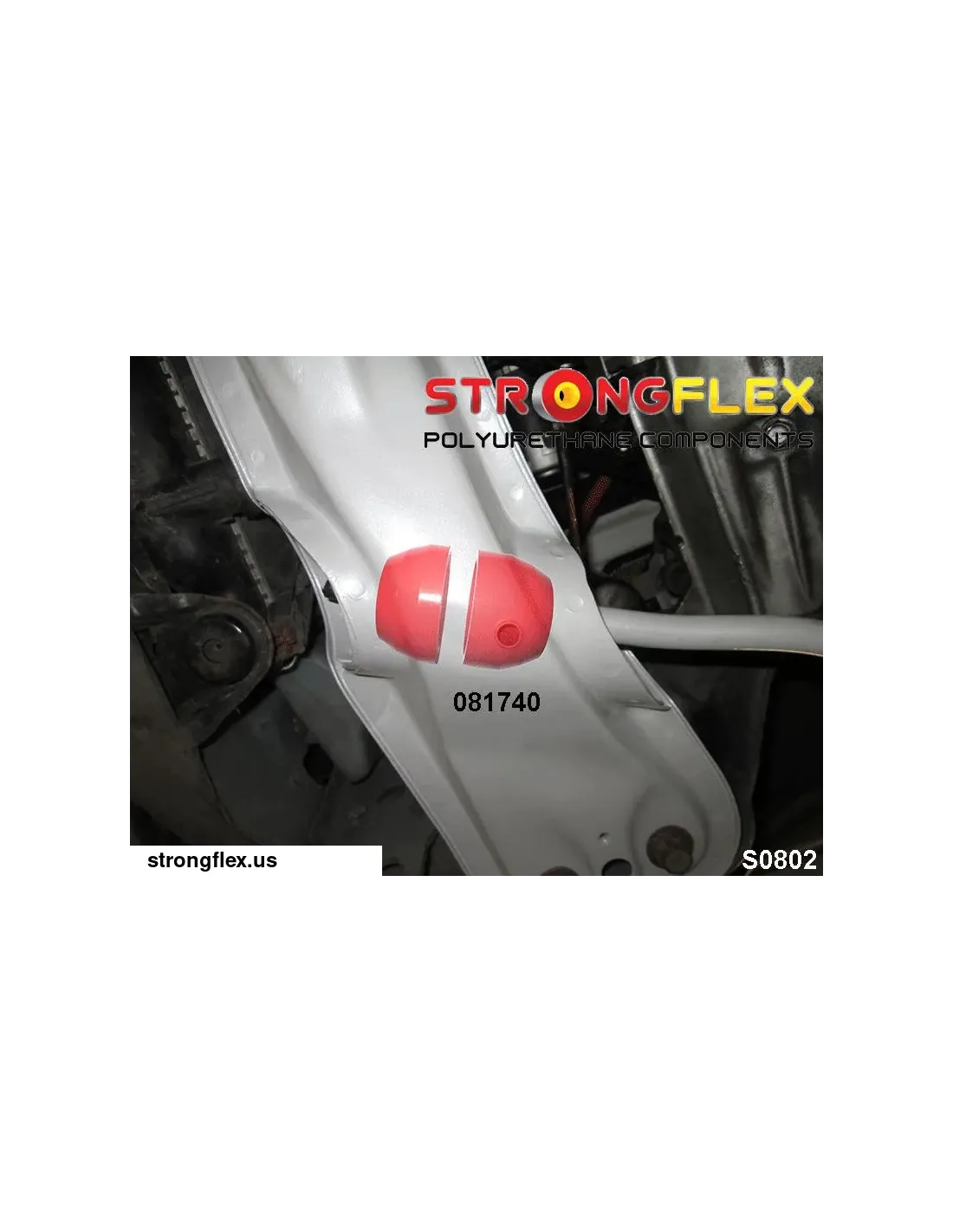

• S0802

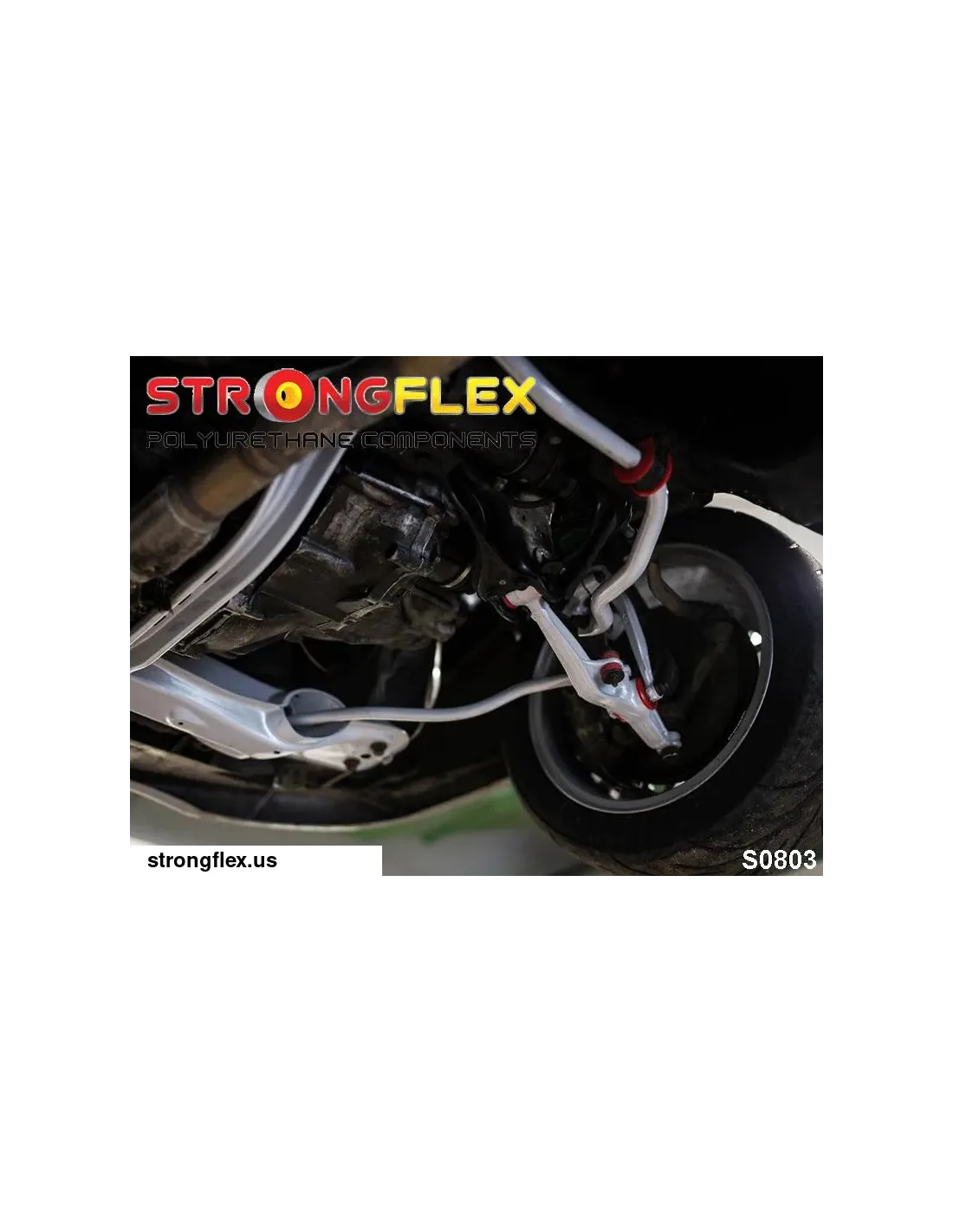

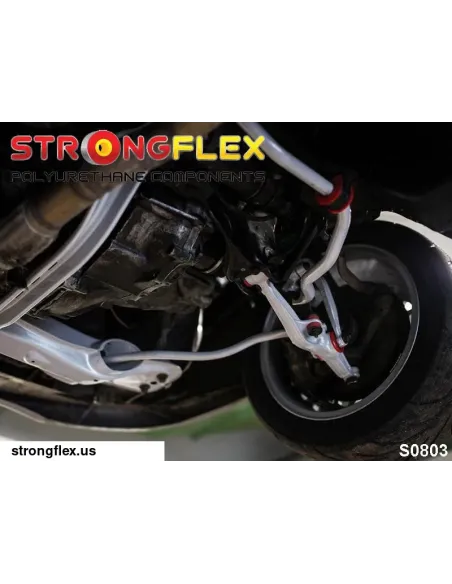

• S0803

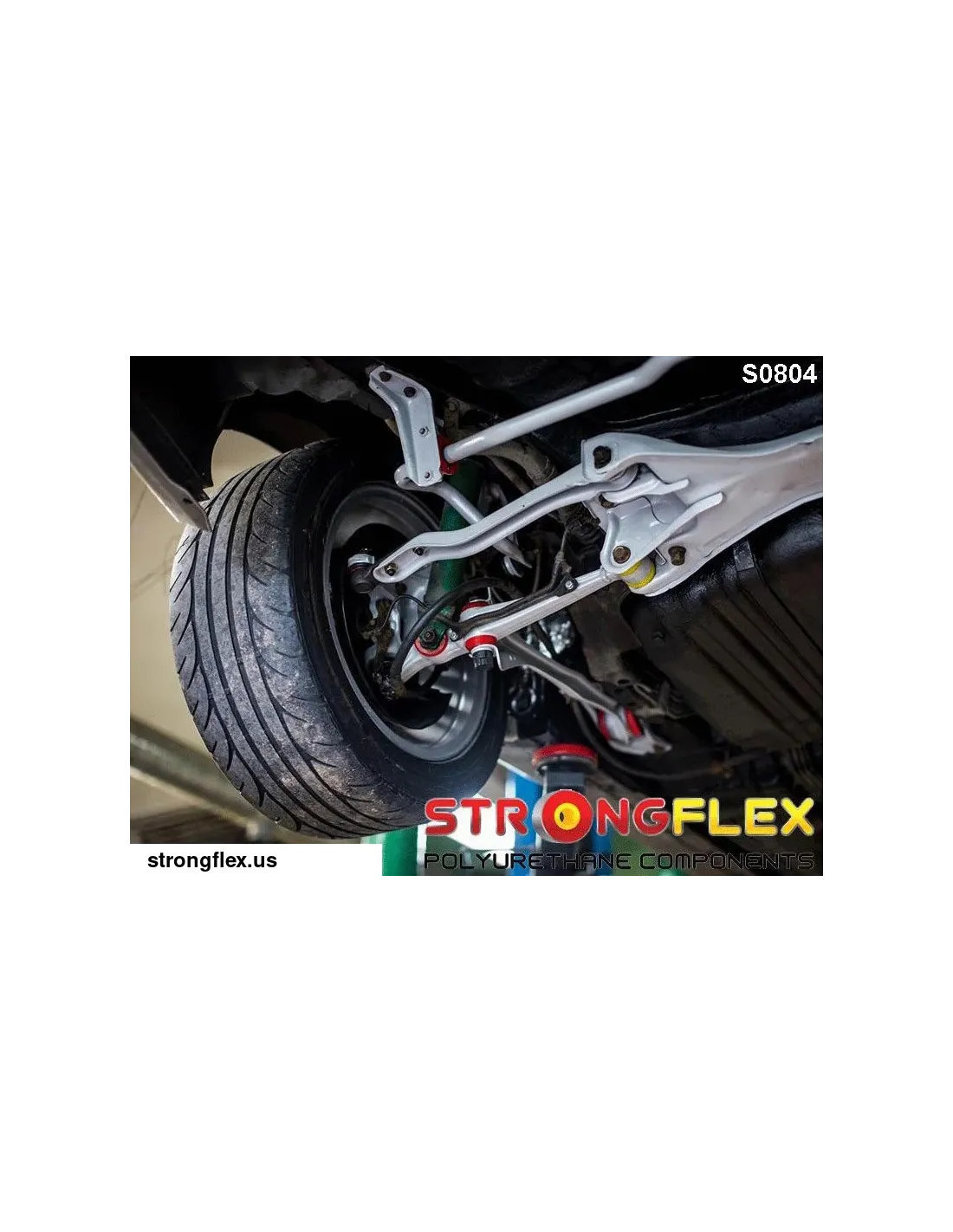

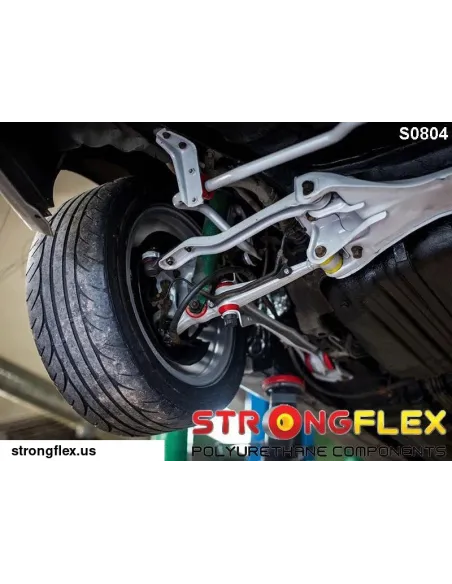

• S0804

Notes

• For bush 081647:
  To install the polyurethane bushing 081647 you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!


• 081742:
  The bush only fits models with the 4WS system. For models without the 4WS system, select "+". For models with the 4WS system, select "-".

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 32/34

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
