036145B: Full suspension bush kit

Reference: 036145B

Product name: Full suspension bush kit

Fits to:

• BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
• BMW Z4 I (02-08) E85 / E86

Include:

• 2x 031248B: Front anti roll bar bush


• 2x 031516B: Front wishbone bush - centric 60mm
  or
• 2x 031517B: Front wishbone bush - centric 66mm
  or
• 2x 031518B: Front wishbone bush - eccentric 66mm
  or
• 2x 031520B: Front wishbone bush - 4x4 versions XI XD


• 2x 031173B: Rear trailing arm front bush
• 2x 031174B: Rear control arm upper inner


• 2/4x 031175A: Rear arm - outer bush SPORT


• 2x 031176B: Rear control arm lower inner
• 2x 031167B: Anti roll bar bush front / rear
• 2x 031413B: Rear subframe front bush
• 2x 031414B: Rear subframe rear bush
• 2x 031751B: Rear differential front mount bush
• 1x 031752B: Rear differential rear mount bush
• 2x 031962B: Rear anti roll bar link to anti roll bar bush
• 2x 031963B: Rear anti roll bar link to arm bush

Diagrams:

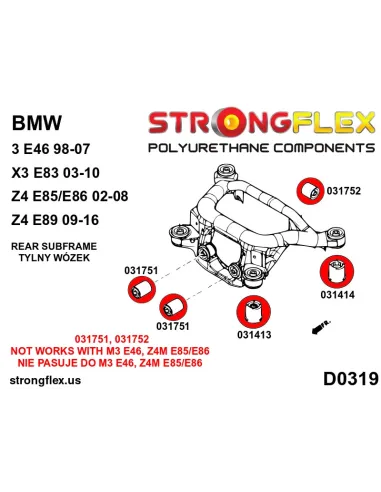

• D0319

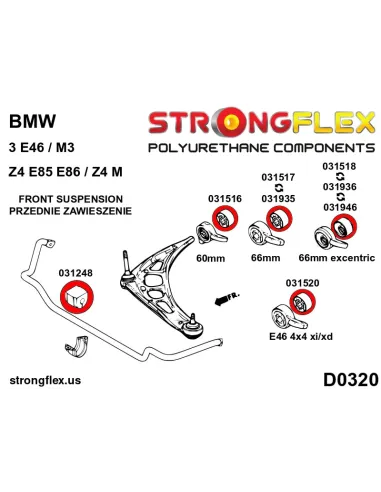

• D0320

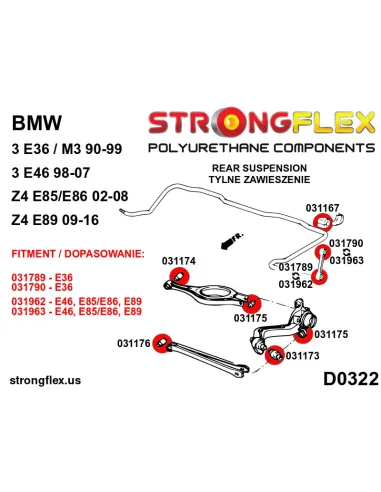

• D0322

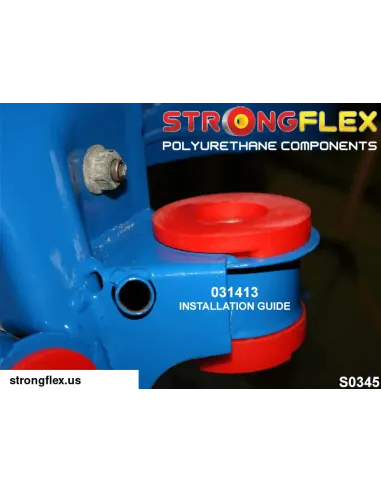

• S0345

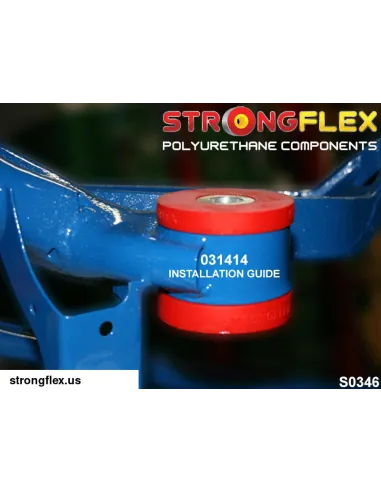

• S0346

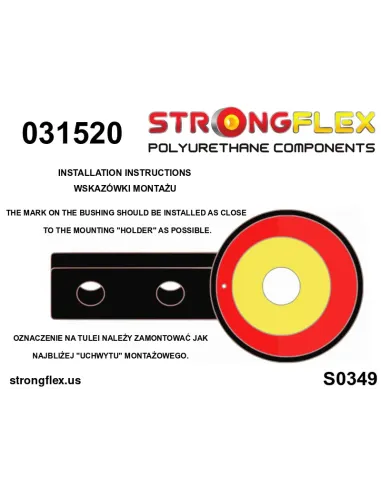

• S0349

Notes

• Front wishbone bush - rear:
  031516 - centric 60mm
  031517 - centric 66mm
  031518 - eccentric 66mm
  031520 - 4x4 versions XI XD


• For bushing 031175:
  This bushing is not suitable for the upper steering knuckle mount on significantly lowered vehicles with a modified steering knuckle angle. Select the appropriate quantity: 2 or 4 pieces.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 25/27

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
