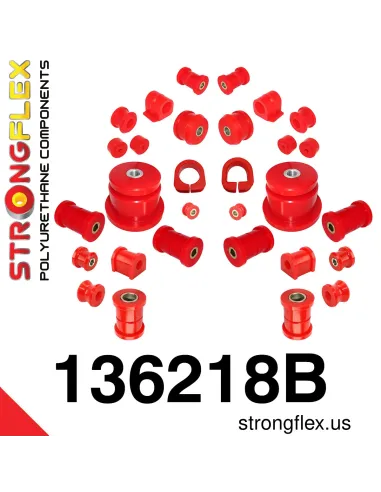

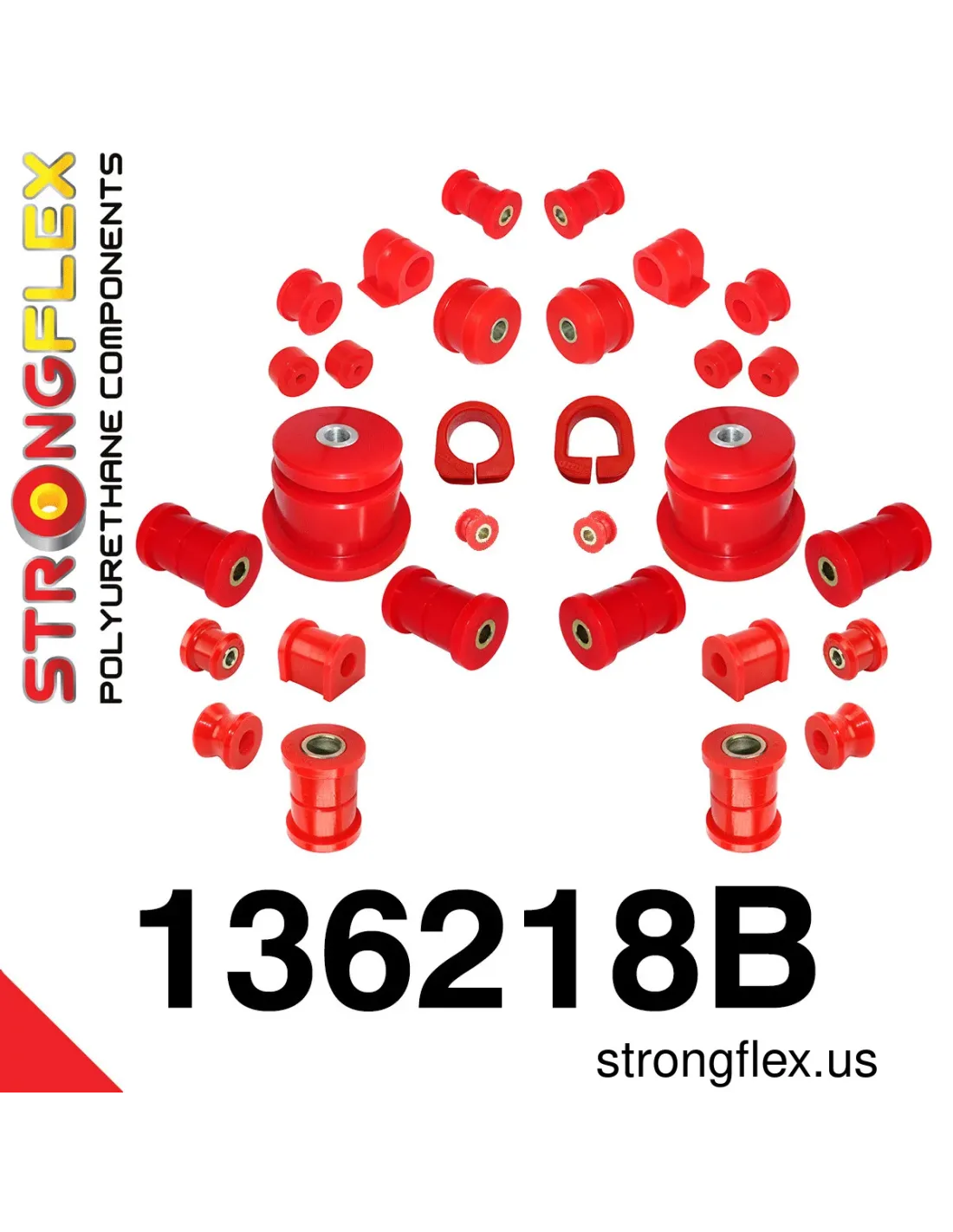

136218B: Full suspension bush kit

Reference: 136218B

Product name: Full suspension bush kit

Fits to:

• Opel / Vauxhall Calibra (89-97) FWD / 4x4
• Opel / Vauxhall Vectra A mk3 (88-95) 4x4

Include:

• 2x 131125B: Front anti roll bar bush
• 4x 131126B: Front eye bolt mounting bush
• 2x 131127B: Anti roll bar link bush
• 2x 131128B: Front wishbone front bush
• 2x 131130B: Front wishbone rear bush


• 2x 131690B: Rear beam bush
• 4x 131692B: Rear trailing arm bush
• 2x 131784B: Rear carrier diff mount bush
• 2x 131785B: Rear anti roll bar bush
• 2x 131786B: Rear anti roll bar link to arm bush
• 2x 131787B: Rear anti roll bar link to anti roll bar bush


• 1x 131416B: Steering rack mount bushes - right 51mm
• 1x 131417B: Steering rack mount bushes - left
• 2x 131961B: Front tie rod bush

Diagrams:

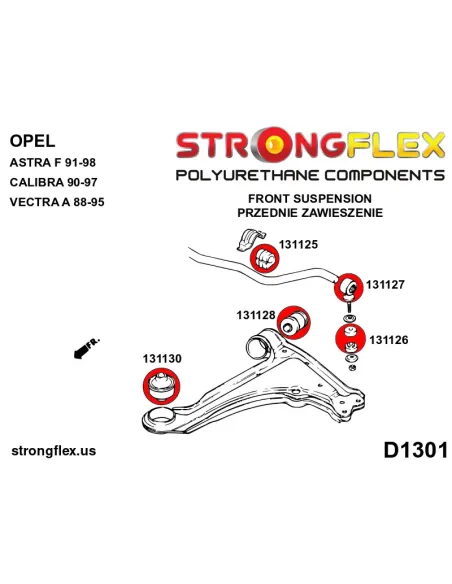

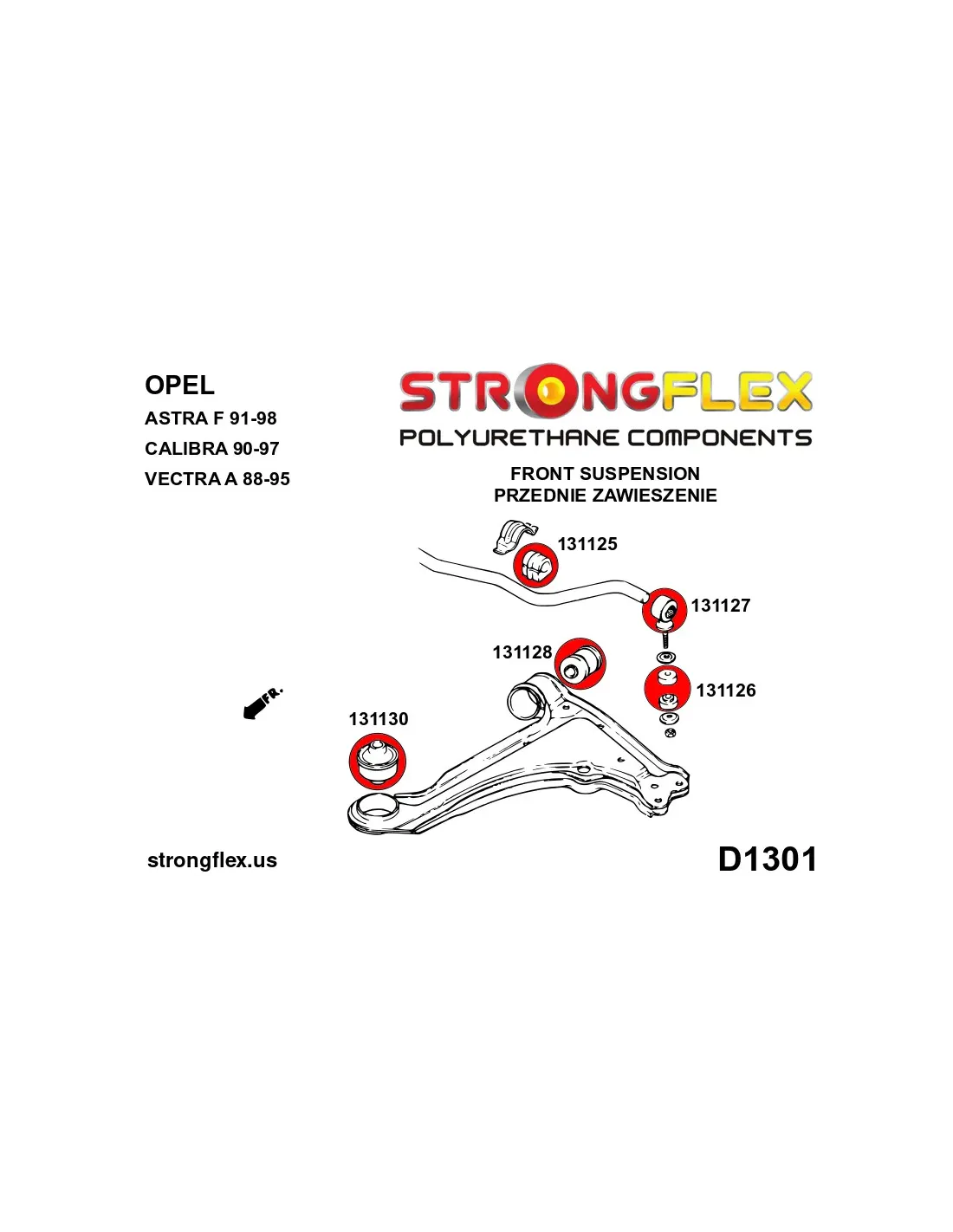

• D1301

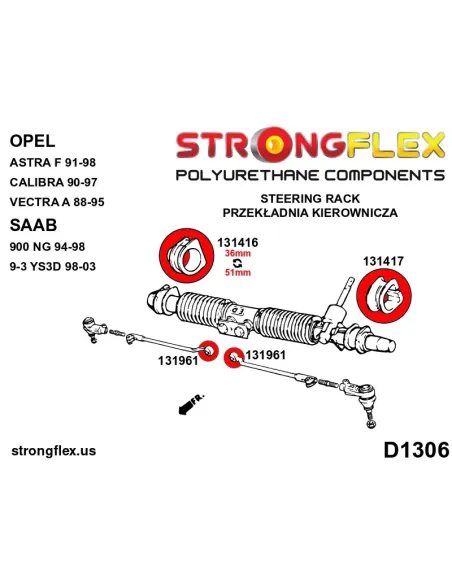

• D1306

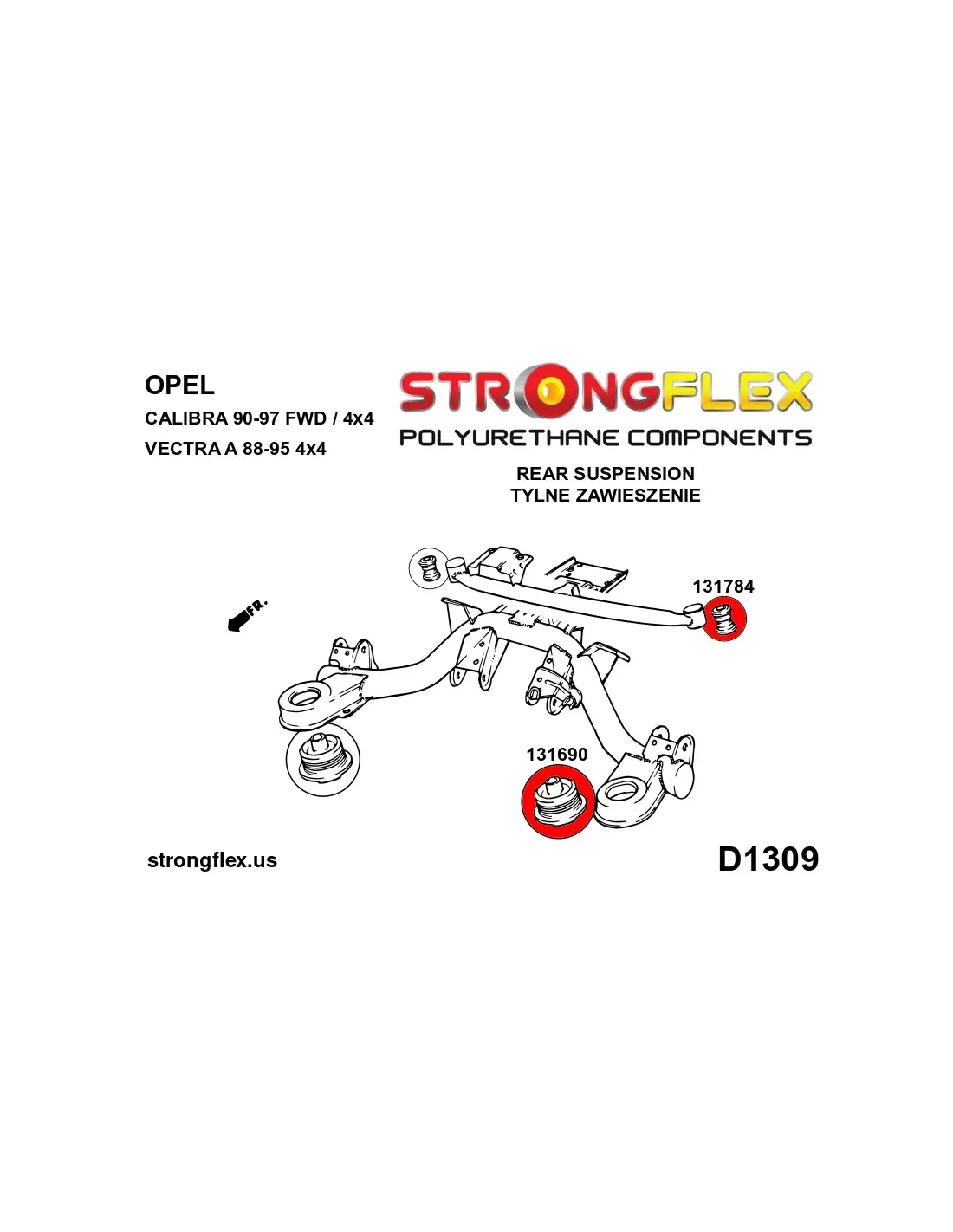

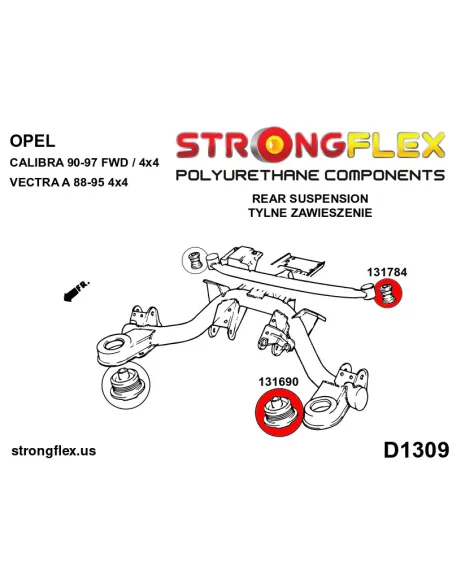

• D1309

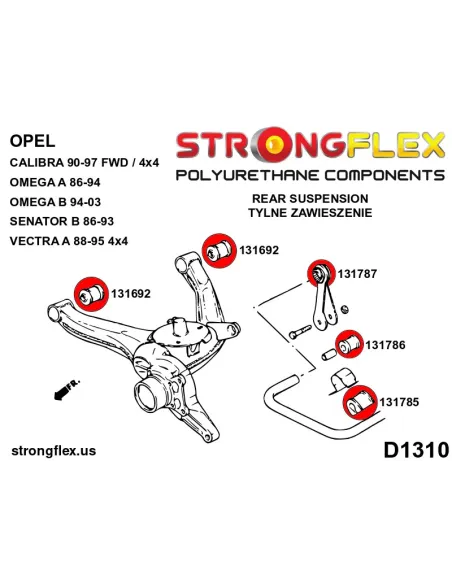

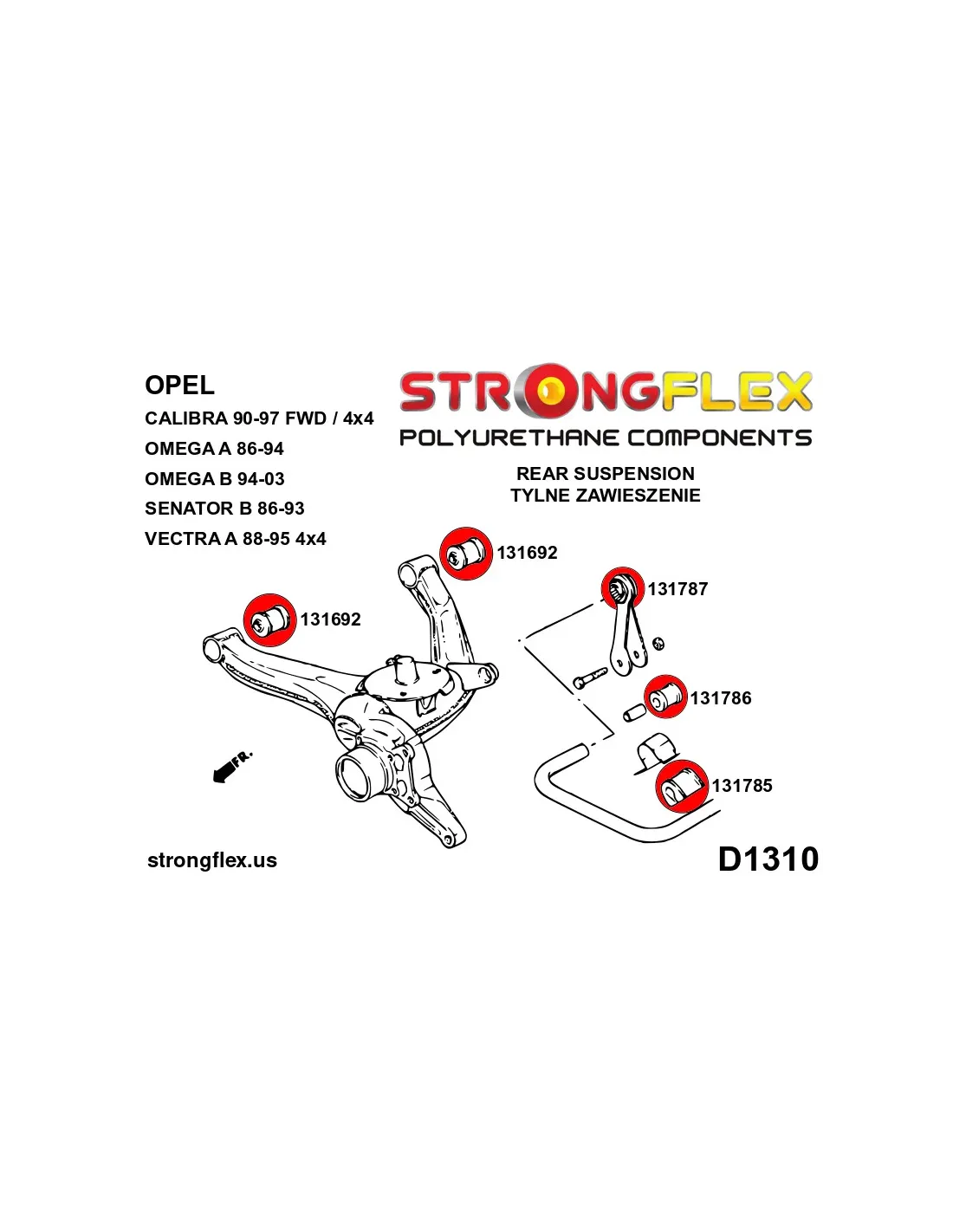

• D1310

Notes

• Bush 131785 and 131787 is prepared for 15mm anti roll bar. Measure anti roll bar diameter before placing order. If you have a different diameter please contact us. We can make the bushes of any internal diameter.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 30

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
