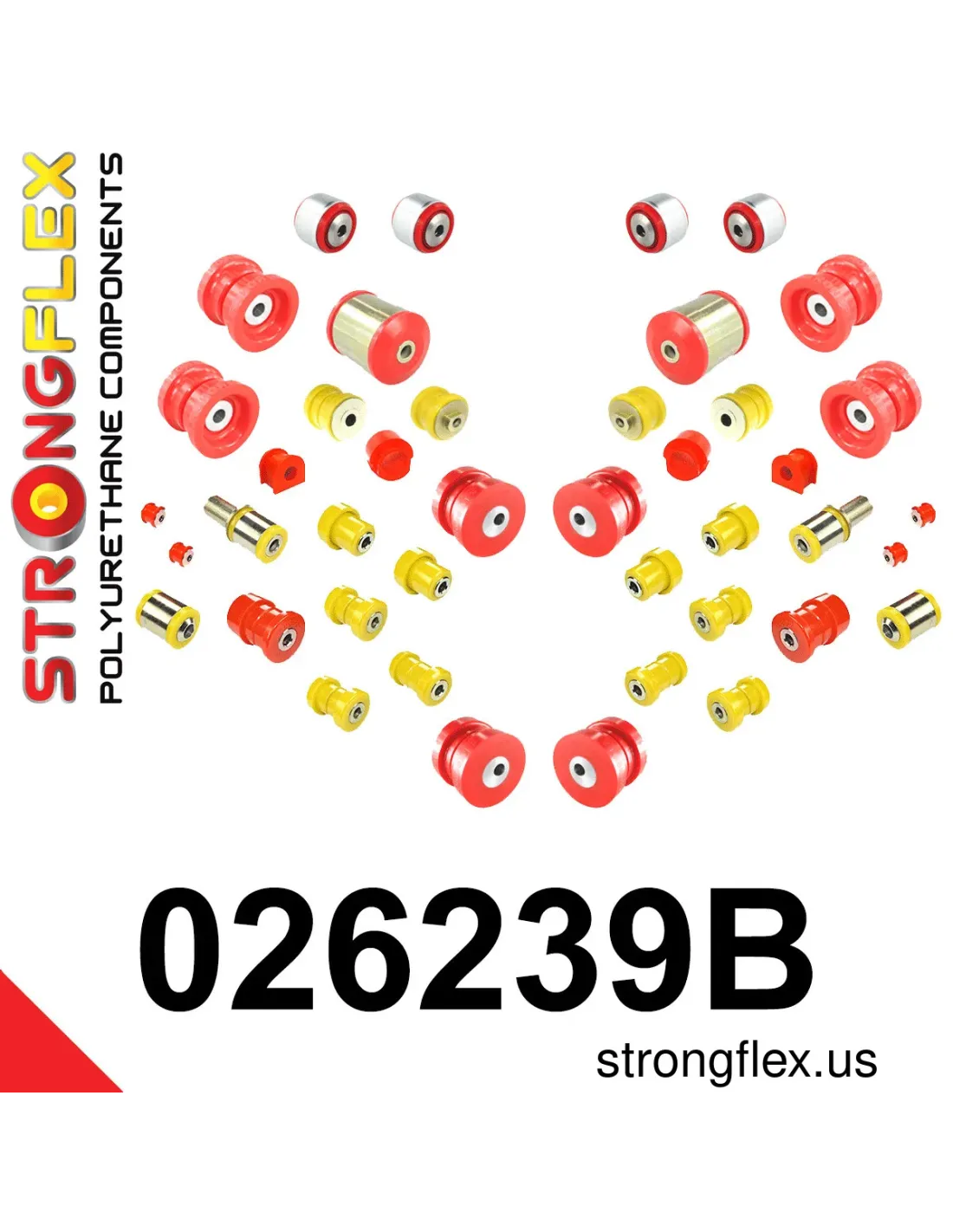

026239B: Full suspension bush kit

Reference: 026239B

Product name: Full suspension bush kit

Fits to:

• Audi A6 C5 (97-04) Quattro & Allroad / S6 / RS6
• Volkswagen Passat B5 (97-05) 4Motion

Include:

• 2x 021255A: Front lower wishbone inner bush SPORT
• 2x 021257A: Front lower wishbone outer bush - length 50mm SPORT
• 2x 021258B: Front lower wishbone - rear bush
• 4x 021259B: Front upper wishbone bush
• 2x 021285B: Front anti roll bar bush
• 4x 021923B: Front anti roll bar link bush
• 4x 221754A: Rear upper arm bush SPORT
• 4x 221763B: Front subframe bush
• 4x 221762B: Rear subframe bush
• 2x 221755A: Rear lower arm front bush SPORT
• 2x 221756B: Rear lower arm rear bush
• 2x 221757A: Rear track rod inner bush SPORT


• 2x 221758A: Rear track rod outer bush SPORT
  or
• 2x 221761A: Rear track rod outer bush SPORT


• 4x 221759A: Rear tie bar to hub bush SPORT
• 4x 221760B: Rear anti roll bar link bush
• 2x 221983B: Rear anti roll bar bush
• 1x 021924B: Rear diff mount - front bush
• 2x 021925B: Rear diff mount - rear bush

Diagrams:

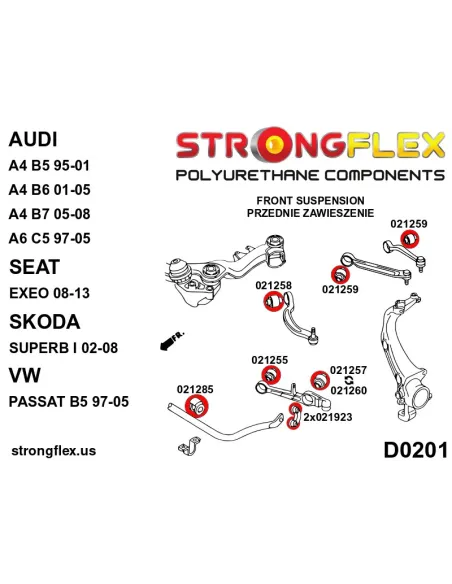

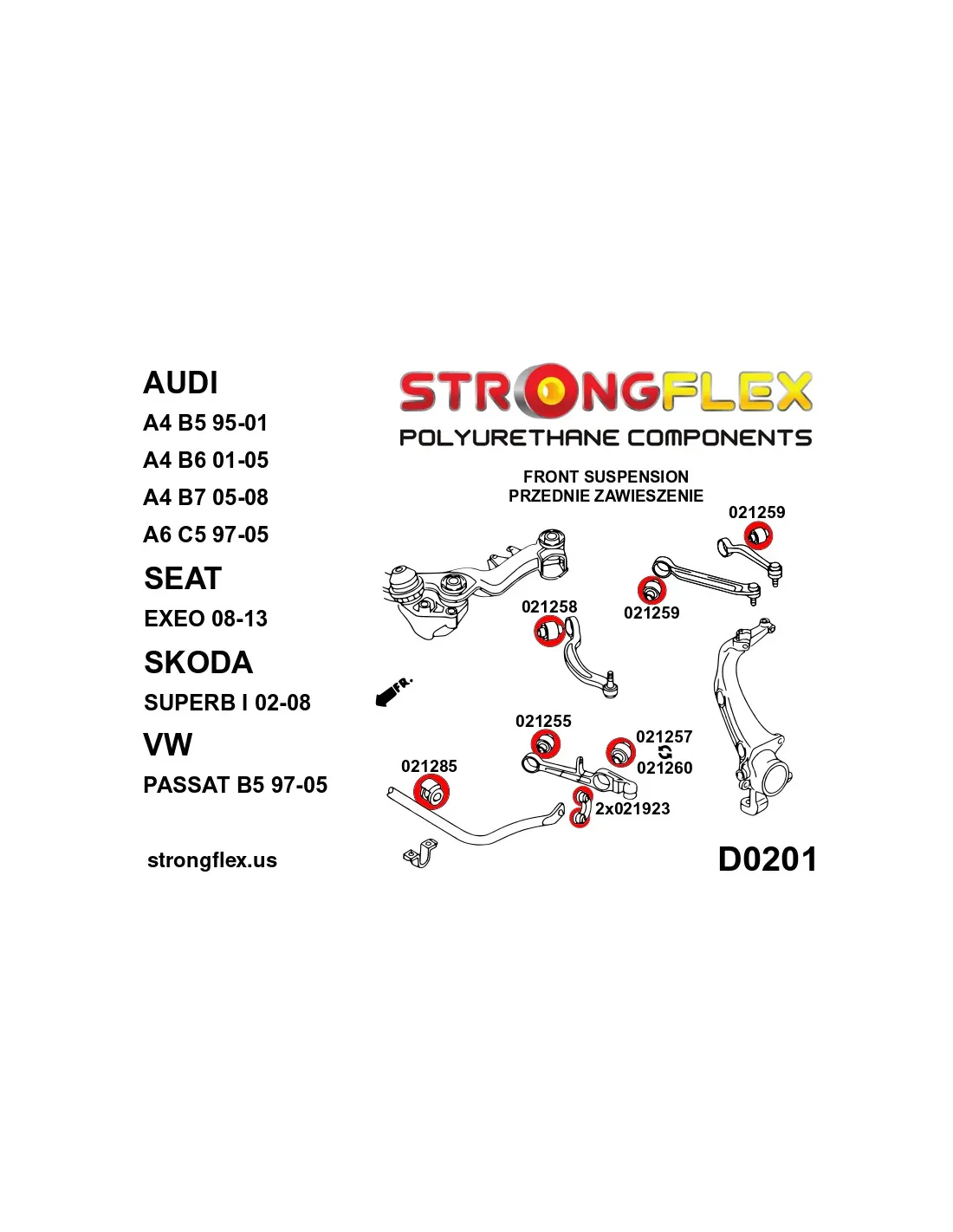

• D0201

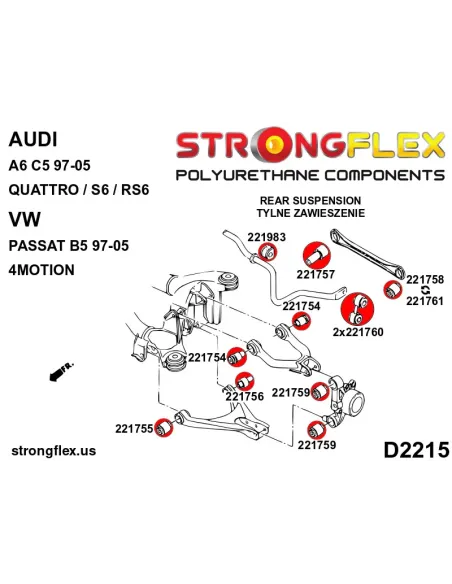

• D2215

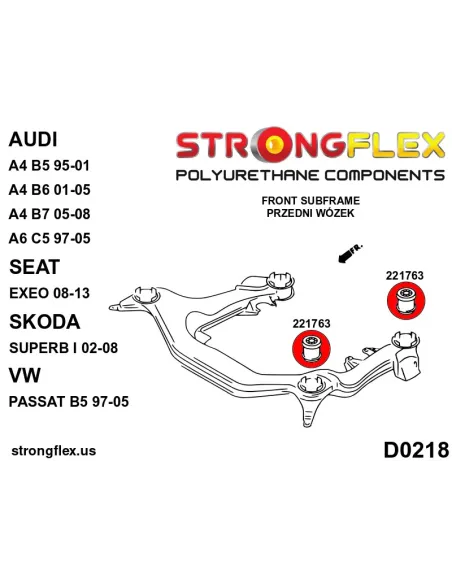

• D0218

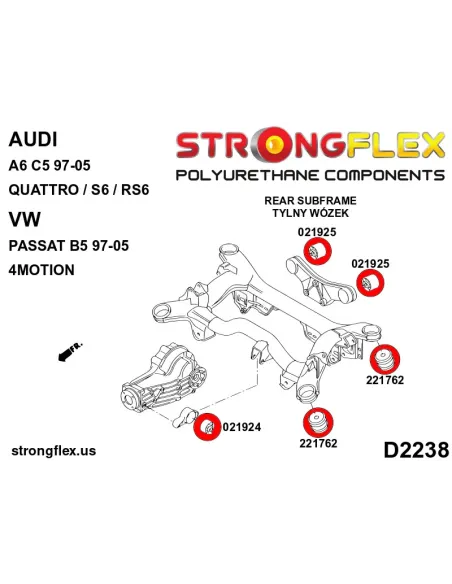

• D2238

Notes

• Rear Link Outer Bushing:
  221758A - Audi 1.8, 1.8 T, 2.0, 2.4, 2.7 T, 3.0, 2.8, 1.9 TDI, 2.5 TDI, VW (all engine versions) (steel link and steering knuckle)
  221761A - Audi 4.2, 4.2 S6, 4.2 RS6, 4.2 RS6 Plus (aluminum link and steering knuckle)

Required/car: 1

Pcs / prod: 46

Pcs / KIT: 49

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
