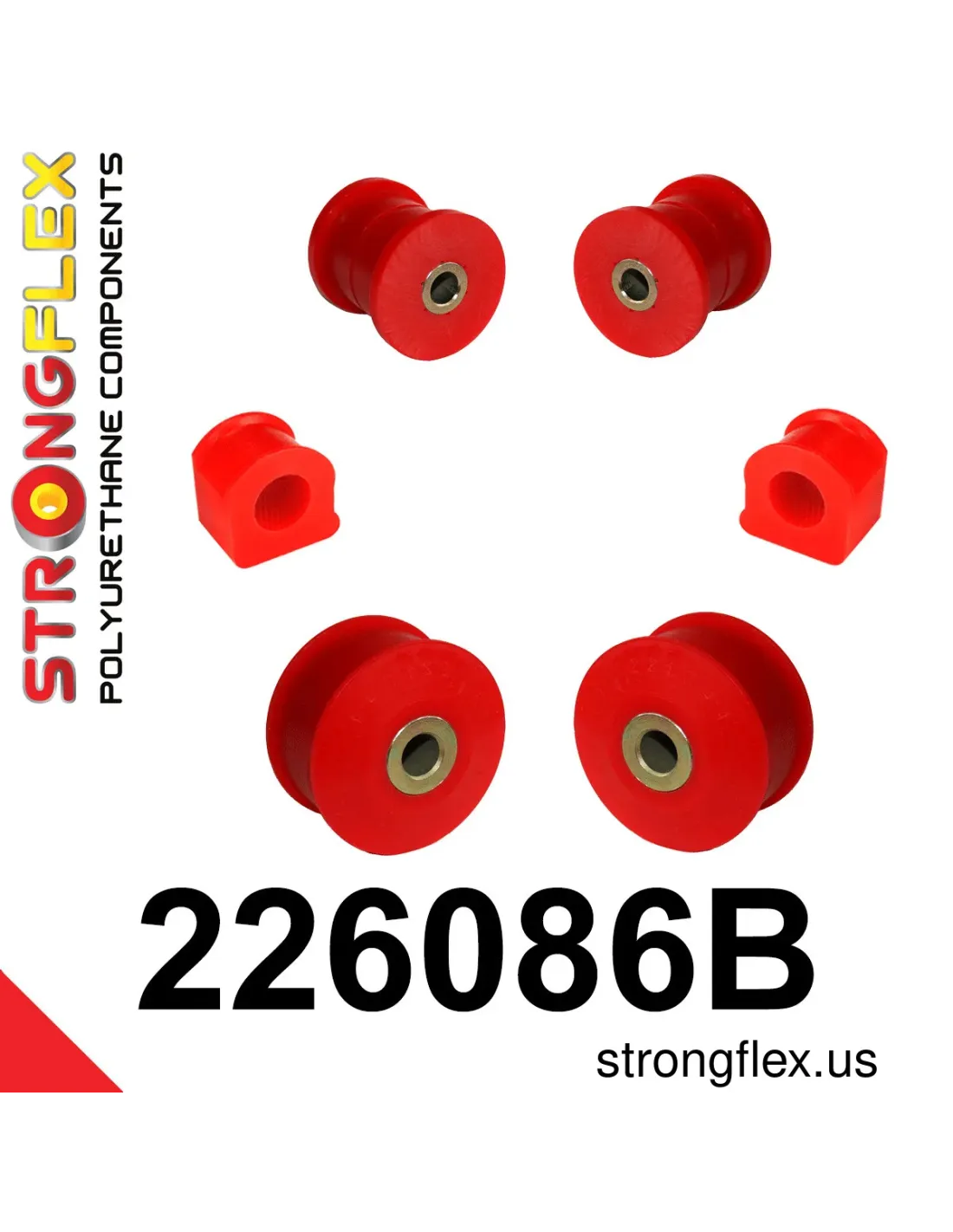

226086B: Front suspension bush kit

Reference: 226086B

Product name: Front suspension bush kit

Fit:

• Audi S3 I (99-03) 8L
• Audi TT 8N (99-06) FWD / Quattro


• Seat Leon I (01-05) Cupra R 1.8T FWD


• Volkswagen Golf IV (02-03) R32
• Volkswagen New Beetle RSI (00-05)

Include:

• 2x 221072B: Front wishbone - front bush 30mm
  or
• 2x 221343B: Front wishbone - front bush 45mm


• 2x 221344B: Front wishbone rear bush


• 2x 221088B: Front anti roll bar bush
  or
• 2x 221089B: Front anti roll bar bush

Diagrams:

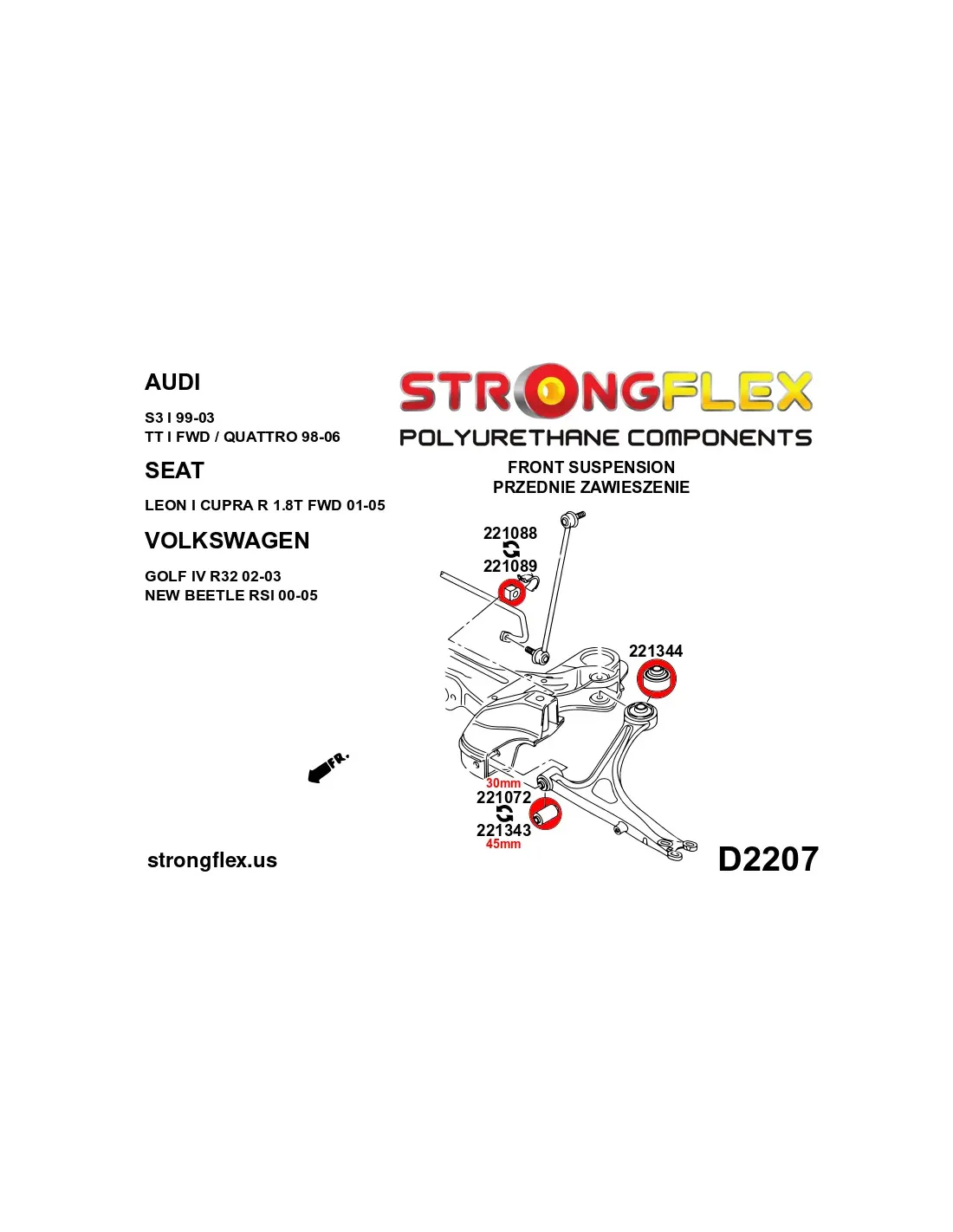

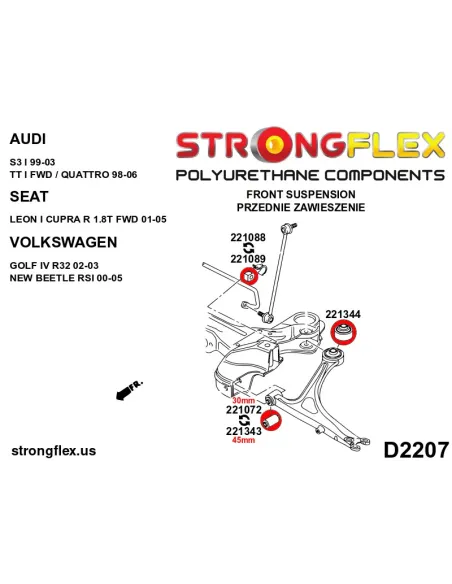

• D2207
• S2201
• S2202

Notes

• This kit fit ONLY to cast arm wishbones!
  There are two different bushes of front wishbone. The later cars have a larger bush - 45mm (221343). The earlier cars have a smaller bush - 30mm (221072).

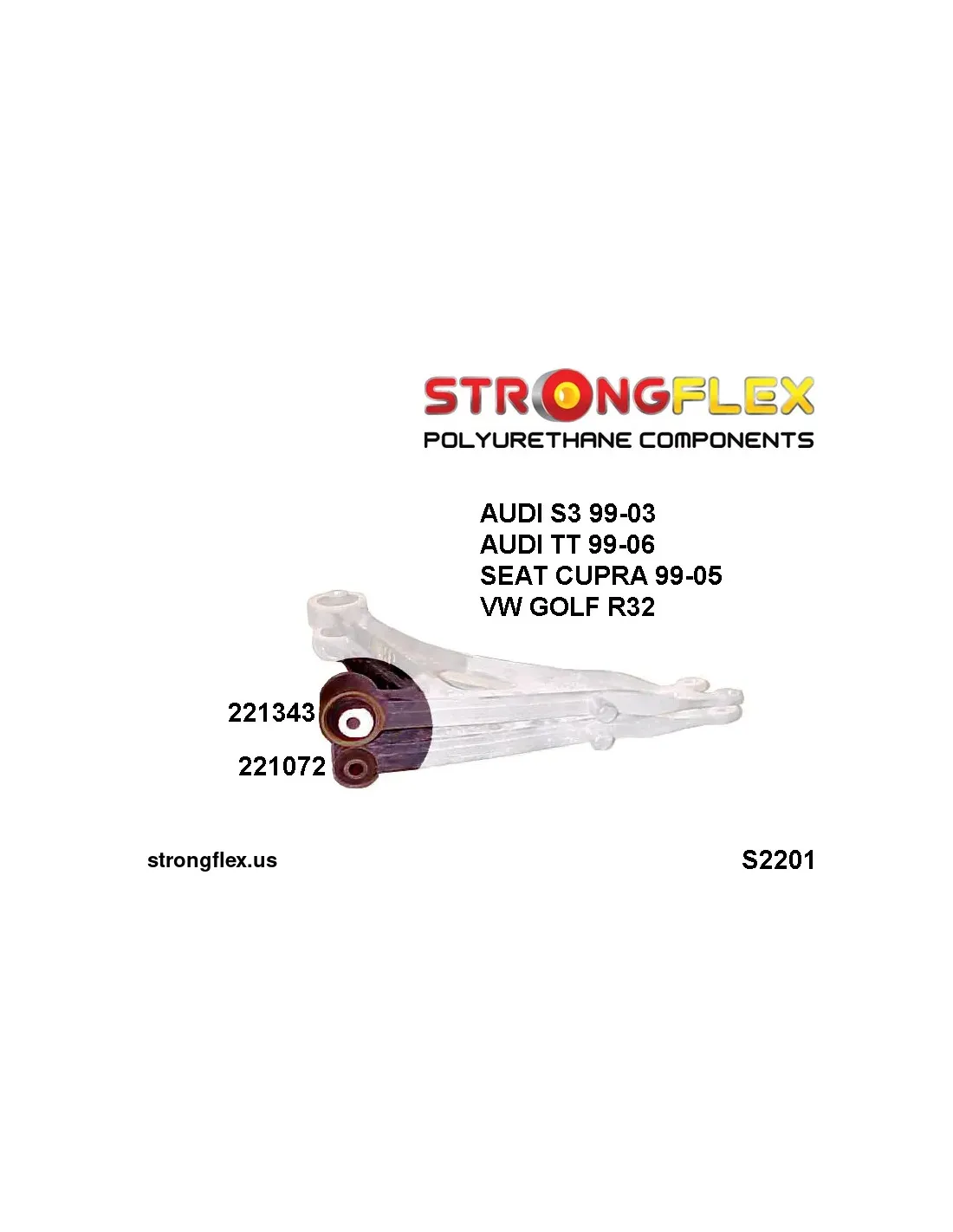

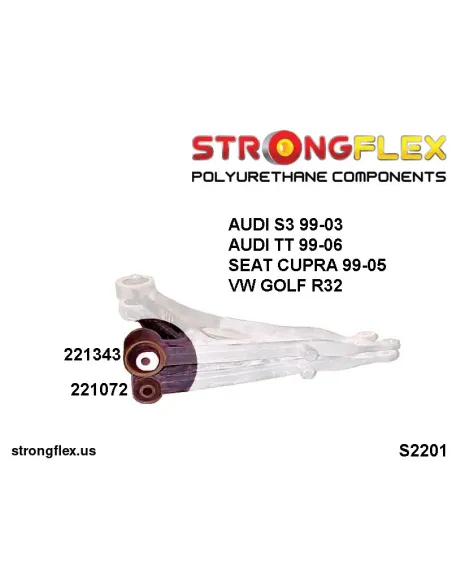

  Before order, please check bushes in your model. See attached picture S2201


• There are two types of front stabilizer bushings.
  OLD TYPE - 221088 or NEW TYPE - 221089

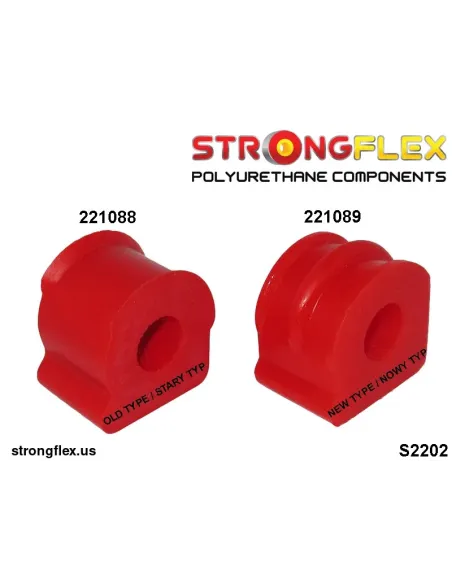

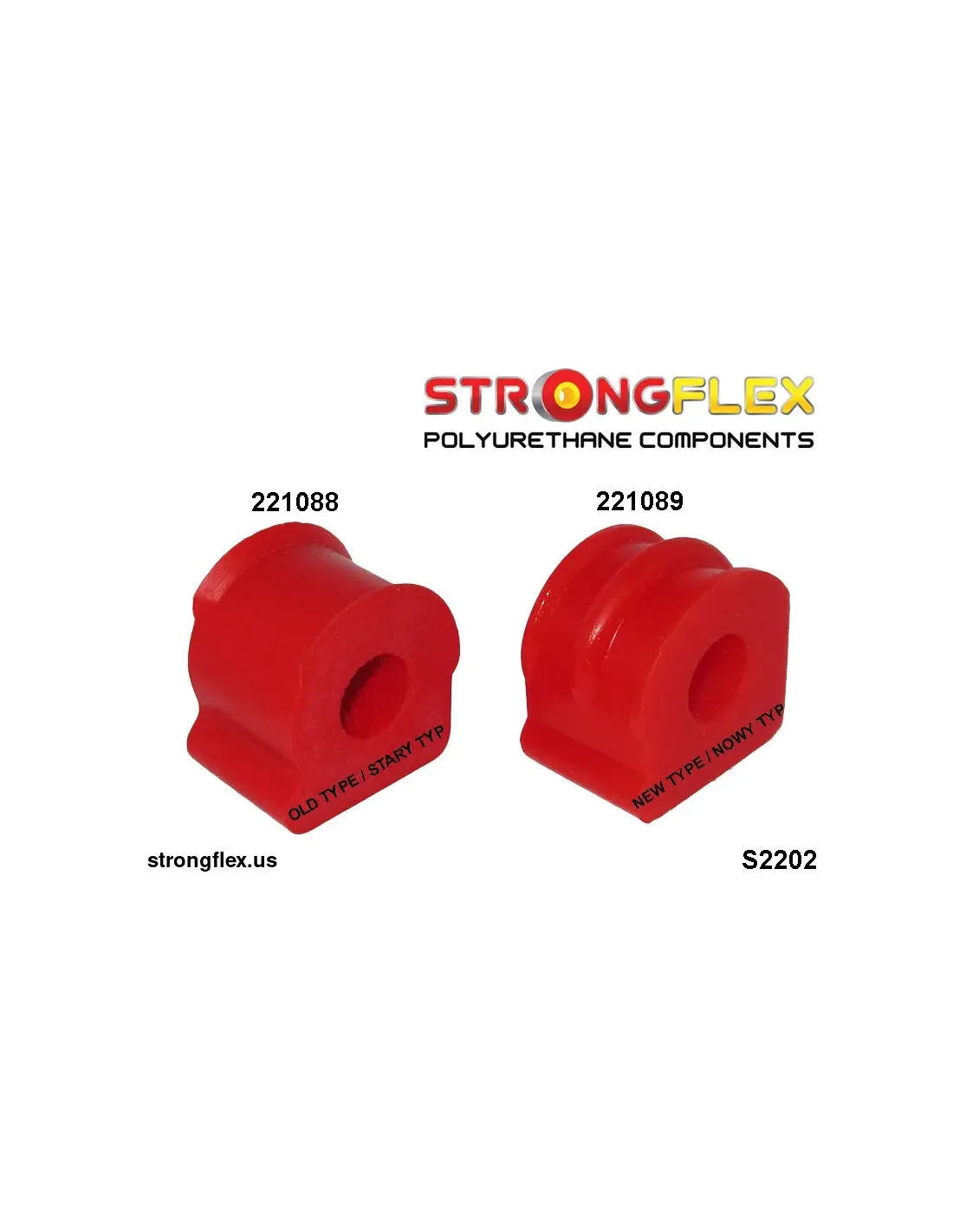

  See photo S2202

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 6

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
